J-H(St)H Lg
FIRE & ALARM | HALOGEN-FREE

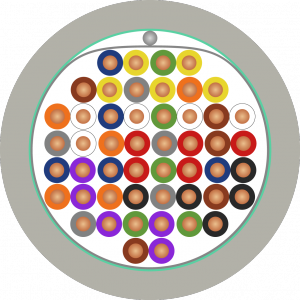

Construction
Conductor: Solid Bare Copper class 1 acc /. UNE-EN 60228
Insulation: UNE-EN 50290-2-26 - Halogen-free compound type Z1.
Assembly: Pairs
Protector: Polyeste tape.
Individual Shielding Al/Pet: Aluminium/Polyester Tape.
Individual Drain wire: Stranded tinned copper wire acc/. UNE-13602
Outer cover: UNE-EN 50290-2-27 - Halogen-free compound type Z1.
Color: Grey RAL-7001
RoHS
Halogen free
Solid Wire
Low smoke opacity
Low gas corrosiveness
Fire retardant
Flame retardant
CETechnical data / Regulations
Operating voltage: 250V
Test voltage: 2.000V 5min
Standards:
(Construction) Basado en VDE 0812 - Cables for telecommunication equipments and data processing
(Insulation) UNE-EN 50290-2-26 - Halogen-free compound type Z1.
(Sheath) UNE-EN 50290-2-27 - Halogen-free compound type Z1.
(Directives) 2011/65/EU - RoHS Directive (No use of toxic products).
(Directives) 2014/35/EU - Low Voltage Products European Directive.
Applications
Metallic cables with multiple elements used for data and signal transmission, for the cabling of instrumentation, equipment, automation systems, for both industrial and domestic applications.
Cables for voltages below or equal to 250 V.
With special fire characteristics that combine flame retardant features and a low heat emission with very low emission of smoke and hazardous gases.
With Aluminium/Polyester screen to protect against electromagnetic interference.
