xx FO 50/125 OM3/OM4/OM5 LOOSE INT/EXT LSZH
FIBRE OPTICS |

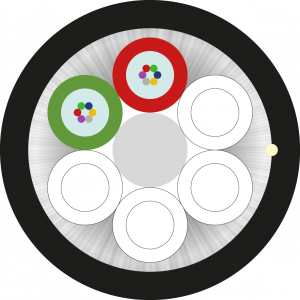

Construction
Central Element:
Fibres Nb: 192
Identification: According to TIA/EIA 598A and IEC 304.
Assembly:
Armour: Glass fibre fillings.
Outer cover: UNE-EN 50290-2-27 - Halogen-free Z1 compound.
Color: Black
Rodent protection
Mechanical protection
CE
Flame retardant
Fire retardant
Low smoke opacity
Halogen free
CPR Compilant
RoHSTechnical data / Regulations.
CPR classification: Dca-s2, d2, a1
Operating temperature: -20... +70ºC
Standards:
(Sheath) UNE-EN 50290-2-27 - Halogen-free Z1 compound.
(Fire) UNE-EN 60754-2 (IEC 60754-2) - Low corrosivity of smoke.
(Fire) UNE-EN 50575 - CPR
(Fire) UNE-EN 60332-3 (IEC 60332-3) Cat A - Fire retardant.
(Fire) UNE-EN 60754-1 (IEC 60754-1) - Halogen-free.
(Fire) UNE-EN 60332-1 (IEC 60332-1) - Flame-retardant.
(Fire) UNE-EN 61034 (IEC 61034) - Low smoke emission.
(Tests) IEC 60794-1 - Basic test procedures for optical cables.
(Tests) IEC 60794-1-21 -
(Tests) IEC 60794-1-22 -
(Directives) 2011/65/EU - RoHS Directive (No use of toxic products).
(System) TIA/EIA 568C - Structured Cabling System
(System) UNE-EN 50173-1 - Information technology - Generic cabling systems - Part 1: General requirements.
(System) ISO/IEC 11801 Edition 2 - Information technology -- Generic cabling.
