xx FO IN/OUT METALLIC MULTI LOOSE TUBE SWA DOUBLE SHEATH
FIBRE OPTIC | IN/OUT METALLIC MULTI LOOSE TUBE WITH DOUBLE OUTER SHEATH

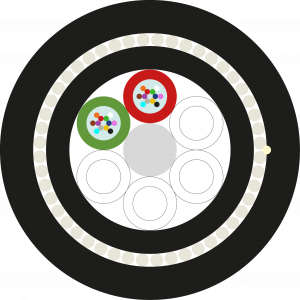

Construction
Central Element: Central element (Glass Reinforced Plastic)
Fibres Nb: 96
Identification: According to TIA/EIA 598A and IEC 304.
Assembly: Tubes filled with thixotropic gel.
Protector: WB reinforced fibreglass fillings (waterblocking)
Inner Sheath: UNE-EN 50290-2-27
Armour: Steel wire armour (SWA).
Outer cover: UNE-EN 50290-2-27 - Halogen-free compound type Z1.
Color: Black
Halogen free
Weather resistant
UV resistant
Rodent protection
Mechanical protection
CE
Low smoke opacity
RoHSTechnical data / Regulations.
Operating temperature: -30... +70ºC
Standards:
(Sheath) UNE-EN 50290-2-27 - Halogen-free compound type Z1.
(Fire) IEC 60331-25 - Intrinsic resistance: PH90 (90 minutes).
(Fire) UNE-EN 60332-1 (IEC 60332-1) - Flame-retardant.
(Fire) UNE-EN 61034 (IEC 61034) - Low smoke emission.
(Fire) UNE-EN 60754-1 (IEC 60754-1) - Halogen-free.
(Fire) EN 50200, IEC 60331-2 (for Ø < 20mm) - Intrinsic resistance: PH120 (120 minutes at 840°C).
(Fire) UNE-EN 60754-2 (IEC 60754-2) - Low corrosivity of smoke.
(Tests) IEC 60794-1 - Basic test procedures for optical cables.
(Tests) IEC 60794-1-21 - Mechanical tests on FO cables.
(Tests) IEC 60794-1-22 - Environmental tests on FO cables.
(Directives) 2011/65/EU - RoHS Directive (No use of toxic products).
(System) ISO/IEC 11801 Edition 2 - Information technology -- Generic cabling.
(System) UNE-EN 50173-1 - Information technology - Generic cabling systems - Part 1: General requirements.
(System) TIA/EIA 568C - Structured Cabling System
Observations
Ceramic loose tube Ø 2.5 mm.
MULTIMODE fibers type 50/125 OM3 / OM4.
SINGLE MODE fibers type 9/125 SO2 / G657.
Applications
Jelly-filled, single loose tube fibre optic cable reinforced with fiberglass strands.
LSZH inner sheath, steel wire armour (SWA) and LSZH outer sheath for indoor and outdoor installations.
Cables up to 96 fibers.
Rodents resistant.
