DATAX LOW CAPACITANCE POS-CY LSZH
DATA TRANSMISSION SYSTEMS | LOW CAPACITANCE POS-CY

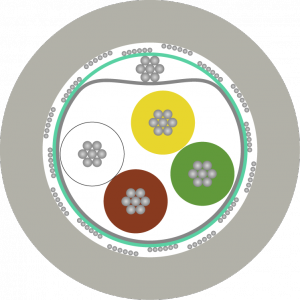

Construction
Conductor: Stranded tinned copper wire acc/. UNE-13602
Insulation: UNE-EN 50290-2-27 - Solid and expanded polypropylene.
Identification: DIN-47100
Assembly: Pairs
2nd protector: Polyeste tape.
Overall Shielding Al/Pet: Aluminium/Polyester Tape.
Overall Drain wire: Stranded tinned copper wire acc/. UNE-13602
Braid Shielding: Tinned copper (Cu Sn) braid shielding.
Shielding coverage: 65%
Outer cover: UNE-EN 50290-2-27 - Halogen-free compound type Z1.
Color: Grey RAL-7001
RoHS
CPR Compilant
Halogen free
Flexible cable
Low smoke opacity
Low gas corrosiveness
Fire retardant
Flame retardant
CETechnical data / Regulations.
CPR classification: Eca
Operating voltage: 300/500V
Test voltage: 2.000V 5min
Operating temperature: -15... +70ºC
Standards:
(Construction) UNE-EN 50288-7 - Metallic cables with multiple elements used for the transmission and control of analogue and digital signals. Medium technical specification for instrumentation and control cables.
(Insulation) UNE-EN 50290-2-27 - Solid and expanded polypropylene.
(Sheath) UNE-EN 50290-2-27 - Halogen-free compound type Z1.
(Fire) UNE-EN 50575 - CPR
(Fire) UNE-EN 60754-2 (IEC 60754-2) - Low corrosivity of smoke.
(Fire) UNE-EN 61034 (IEC 61034) - Low smoke emission.
(Fire) UNE-EN 60332-1 (IEC 60332-1) - Flame-retardant.
(Fire) UNE-EN 60754-1 (IEC 60754-1) - Halogen-free.
Applications
Low-capacitance shielded cables with double shielding in Al/Pet and tinned copper braid. outer sheat made of a mix of halogen-free thermoplastic and low smoke and corrosive gases emissions when subjected to the action of fire. Cables intended for signal and data transmission in computer systems, electronic control equipment, intercommunication, instrumentation, etc, suitable for applications in RS-232, RS-422, RS-485 protocols.
