DATAX PAR-POS PVC 250V
DATA | PVC

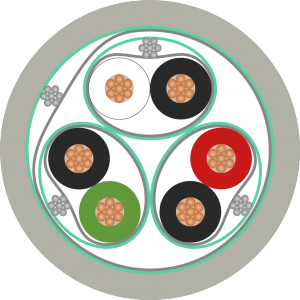

Construction
Conductor: Flexible stranded copper wire. Class 5 acc/. UNE-EN 60228.
Insulation: UNE-EN 50290-2-23 - Polyethylene for insulation.
Identification: Color code A.3 according to UNE 212016.
Assembly: Pairs
Protector: Polyeste tape.
Individual Shielding Al/Pet: Aluminium/Polyester Tape.
Overall Shielding Al/Pet: Aluminium/Polyester Tape.
Individual Drain wire: Stranded tinned copper wire acc/. UNE-13602
Overall Drain wire: Stranded tinned copper wire acc/. UNE-13602
Outer cover: EN 50290-2-22 - Compound PVC type TM52.
Color: Grey RAL-7032
CPR Compilant
RoHS
Flexible cable
Flame retardant
CETechnical data / Regulations
CPR classification: Eca
Operating voltage: 250V
Test voltage: 1000 V
Operating temperature: -5... +70ºC
Standards:
(Construction) UNE 212016 - Metallic cables with multiple elements used for data transmission for voltages below or equal to 250 V.
(Insulation) UNE-EN 50290-2-23 - Polyethylene for insulation.
(Sheath) UNE-EN 50288-7 - Instrumentation and control cables. / EN 50290-2-22 - Compound PVC type TM52.
(Fire) UNE-EN 60332-1 (IEC 60332-1) - Flame-retardant.
Applications
Flexible cables for data transmission, in pairs, for both analogue and digital signals, in computer applications, electronic control equipment, small machines for offices, scales, etc... With individual aluminium/polyester shielding on the pair and overall shielding for protection against electromagnetic interference.
Cables suitable for installation in dry or humid places. Mainly for fixed installations or with occasional movement.
