CONDEFLEX Cat5e U/UTP 4x2xAWG24 100 MHz PE
DATA TRANSMISSION SYSTEMS | STRUCTURED CABLING SYSTEMS

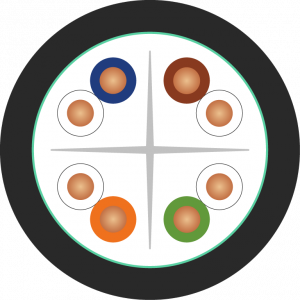

Construction
Conductor: Solid Bare Copper AWG24.
Insulation: UNE-EN 50290-2-23 - Polyethylene for insulation.
Identification: White / Blue - Blue, White/Green-Green, White/Orange-Orange, White/Brown-Brown
Assembly: Pairs
Protector: Polyeste tape.
Outer cover: UNE-EN 50290-2-27 - Halogen-free compound type Z1.
Color: Grey RAL-7035
RoHS
CE
Low gas corrosivenessTechnical data / Regulations
Operating voltage: 100/100V
Test voltage: 1000 V
Operating temperature: -15... +70ºC
Standards:
(Construction) UNE-EN 50288-3-1 - Metallic cables with multiple elements used for the transmission and control of analogue and digital signals. Part 2-1: Intermediate specification for unshielded cables for use up to 100 MHz. Cables for horizontal and vertical installations in buildings.
(Construction) IEC-61156-5 - Multicore and balanced pair/quad cables for digital communications - Part 5: Balnced pair/quad cables with transmission characteristics up to 1 000 MHz
(Insulation) UNE-EN 50290-2-23 - Polyethylene for insulation.
(Sheath) UNE-EN 50288-7 - Instrumentation and control cables. / UNE-EN 50290-2-24 - Polyethylene for outer sheaths.
(Directives) 2014/35/EU - Low Voltage Products European Directive.
(Directives) 2011/65/EU - RoHS Directive (No use of toxic products).
(System) UNE-EN 50173-1 - Information technology - Generic cabling systems - Part 1: General requirements.
(System) ISO/IEC 11801 Edition 2 - CLASSE D - Information technology -- Generic cabling.
Applications
Unshielded data cable for digital and analogue voice, data and video signal transmission applications. Category 5e cable up to 100 MHz. Suitable for outdoor applications.
Complies with IEEE802.3, IEE802.5 and IEEE82.12 (Ethernet, Token Ring, TP-PMD) requirements.
Also complies with ATM 622 Mps applications.
