CONDEFLEX Cat5e U/UTP 4x2xAWG26 Flexible 100 MHz PVC
DATA TRANSMISSION SYSTEMS | STRUCTURED CABLING SYSTEMS

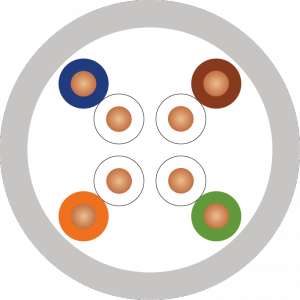

Construction
Conductor: Stranded bare copper wire AWG26 / 7.
Insulation: UNE-EN 50290-2-23 - Polyethylene for insulation.
Identification: White / Blue - Blue, White/Green-Green, White/Orange-Orange, White/Brown-Brown
Assembly: Pairs
Protector: Polyeste tape.
Outer cover: EN 50290-2-22 - Compound PVC type TM52.
Color: Grey RAL-7035
RoHS
Flame retardant
CETechnical data / Regulations
Operating voltage: 100/100V
Test voltage: 1000 V
Operating temperature: -15... +70ºC
Standards:
(Construction) UNE-EN 50288-3-2 - Metallic cables with multiple elements used for the transmission and control of analogue and digital signals. Part 3-2: Intermediate specification for unshielded cables for use up to 100 MHz . Cables for working areas installation and for connection.
(Construction) IEC 61156-6 - Multicore and balanced pair/quad cables for digital communications - Part 5: Balnced pair/quad cables with transmission characteristics up to 1 000 MHz- cables for connections.
(Insulation) UNE-EN 50290-2-23 - Polyethylene for insulation.
(Sheath) UNE-EN 50288-7 - Instrumentation and control cables. / EN 50290-2-22 - Compound PVC type TM52.
(Fire) UNE-EN 60332-1 (IEC 60332-1) - Flame-retardant.
(Directives) 2014/35/EU - Low Voltage Products European Directive.
(Directives) 2011/65/EU - RoHS Directive (No use of toxic products).
(System) UNE-EN 50173-1 - Information technology - Generic cabling systems - Part 1: General requirements.
(System) ISO/IEC 11801 Edition 2 - PATCH CABLE - Information technology -- Connection wiring
Applications
Unshielded data cable for digital and analogue voice, data and video signal transmission applications. For use in patch cords (patch cables).Category 5e cable up to 100 MHz. AWG26/7 flexible conductors.
Complies with IEEE802.3, IEE802.5 and IEEE82.12 (Ethernet, Token Ring, TP-PMD) requirements.
Also complies with ATM 622 Mps applications.
