CONDEFLEX Cat8 acc/FTP 4x2xAWG22 2000 MHz LSZH Cca

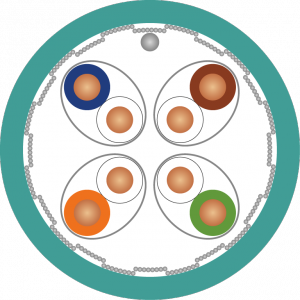

Construction

Conductor: Solid Bare Copper AWG23.
Insulation: UNE-EN 50290-2-27 - Expanded polyethylene FOAM-SKIN
Identification: White/Brown-Brown, White/Orange-Orange, White/Green-Green, White / Blue - Blue
Assembly: Pairs
Individual Shielding Al/Pet: Aluminium/Polyester Tape.
Overall Shielding Al/Pet: Tinned copper (Cu Sn) braid shielding.
Overall Drain wire: Solid tinned copper AWG24.
Outer cover: UNE-EN 50290-2-27 - Halogen-free compound type Z1.
Color: Turquoise RAL-6027

CONDEFLEX Cat8 acc/FTP 4x2xAWG22 2000 MHz LSZH Cca
CPR Compilant CPR Compilant
Flame retardant Flame retardant
CE CE
RoHS RoHS
Halogen free Halogen free
Low smoke opacity Low smoke opacity
Fire retardant Fire retardant

Technical data / Regulations

CPR classification: Cca-s1, d1, a1
Operating voltage: 100/100V
Test voltage: 1000 V
Operating temperature: -15... +70ºC
Standards:
(Construction) IEC 61156-9 CAT8.1 - Multicore and symetrical pair/quad cables for digital communications - Part 9: Pairs / quad symetrical cables with transmission characteristics up to 2 GHz.
(Insulation) UNE-EN 50290-2-27 - Expanded polyethylene FOAM-SKIN
(Sheath) UNE-EN 50290-2-27 - Halogen-free compound type Z1.
(Fire) UNE-EN 60332-1 (IEC 60332-1) - Flame-retardant.
(Fire) UNE-EN 50575 - CPR
(Fire) UNE-EN 60754-2 (IEC 60754-2) - Low corrosivity of smoke.
(Fire) UNE-EN 61034 (IEC 61034) - Low smoke emission.
(Fire) UNE-EN 60754-1 (IEC 60754-1) - Halogen-free.
(Directives) 2014/35/EU - Low Voltage Products European Directive.
(Directives) 2011/65/EU - RoHS Directive (No use of toxic products).
(System) TIA 568-C.2-1 CAT8 - Balanced Twisted-Pair for telecommunications networks . Category 8.
(System) ISO/IEC 11801 Edition 2.2 - CLASSE Fa - Information technology -- Generic cabling.
(System) UNE-EN 50173-1 - Information technology - Generic cabling systems - Part 1: General requirements.

Applications

Data cable with individual aluminium/polyester shielding on the pair and overall tinned copper braid, for digital and analogue voice, data and video signal transmission applications. Category 8 cable up to 2000 MHz in horizontal installations.
For the following applications:
Ethernet IEEE 802.3an 10GBaseT (90 m)
Ethernet IEEE 802.3 bq 40GBase T (30 m)
TOKEN RING 4/16 MBITS
ATM 155, 622MBits/s and 1.2Gbits.
IEEE 802.3 af&an : PoE and PoE+ and future IEEE 802.3 bt (4pPoE)
